Product Description
Round Shaft Helical Piles
-
Square Bar shaft helical pier
* Bar Material: 40Cr or 45# steel, round corner 5mm radius
* Helix Plate material conforms to ASTM A36 hot rolled plate
* helices thickness are available in 3/8” and 1/2” inch
* All helix leading edges sharpened and rock cut and 45 degrees.
* Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating
* A better conventional solid steel extra high strength helical screw pile
* Welded coupling for greater strength. Eliminates shaft heat damage caused by upset coupling process
Note:We can accept OEM service.
| Specification |
| size | Lead Length (ft) | Helix Size (inch) | Extension Length(ft) |
| 1-1/2" | 3ft/5ft/7ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 1-3/4" | 3ft/5ft/7ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 2" | 3ft/5ft/7ft/10ft | 8/10/12/15 | 3ft/5ft/7ft/10ft |
note:Other sizes are available upon request
  |
-
-
Notes:OEM service is available, different materials and specifications can be customized according to your demands.
Advantages
solar ground screw anchor is:offset eye helical anchor
1. extremely environmentally friendly and economical, can be recycled.
2. installed in a matter of minutes without digging and concrete.
3. more efficiency, lower cost, low labor strength.
4. operated precisely, flexible during drilling process.
5. no negative effects on landscape, no damaging on surrounding area.
6. long lifetime. Helical Soil Anchors
7. subjected to strict quality assurance, approved by LGA in Germany.

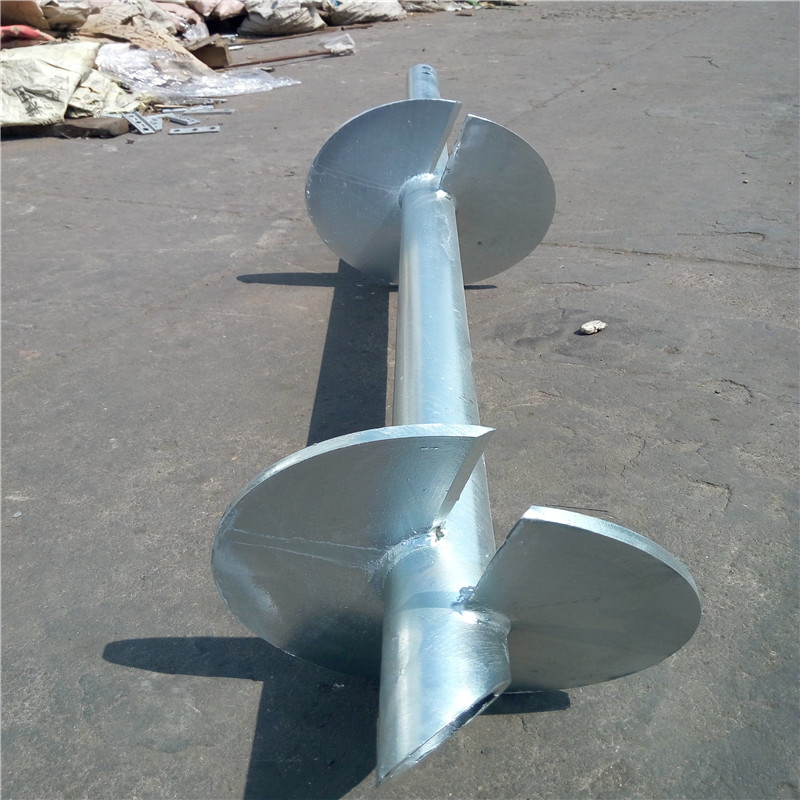

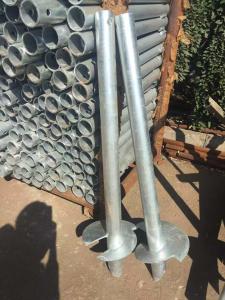

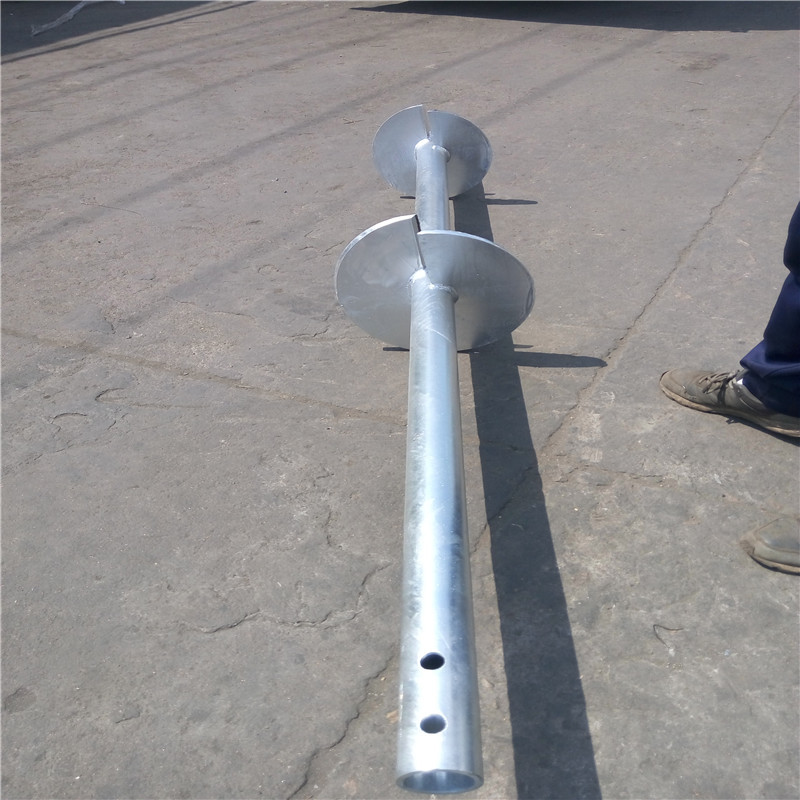

Here are the pictures of the helix anchor
>>>Advantage
1. Raw material comes from tope 10 Steel Companies in China.
2. Sample for confirm first before bulk production.
3. QC.Testing report is compulsory before each dispatch.
4. ISO, SGS certify our quality.
5. 1 20ft container can be shipped within 25 days.
6. 24 hours on line service for global markets.
7. 12 sales consultant with 5 documents assiatant focus on solving customers' different problems in a high efficiency.
>>>FAQ:
1 what’s your payment term
T/T, LC, PayPal, Westunion, Money Gram
2 How long is your delivery time?
3-5 days for sample, delivery time of mass goods is upon quantity.
3 Where is factory located?
Qingdao, Shandong,China, 20 mins away from Liuting Airport.
4 Do you have certificate?
We have ISO, SGS, TS16969 Certificate
5 Can I get a sample first?
Sample is free, but customer pay for express fee.
